PD Series Diagnostic Couplers
PD couplers provide easy connection to mechanical gauges or specialised diagnostic equipment. PD nipples are usually permanently threaded in the test ports on the machine with the coupler attached to the test instrument.
CAT, John Deere, Case
Materials: Steel Trivalent Plated
Valve: Flat
Threads: NPT
KD Series Diagnostic Couplers
KD couplers provide easy connection to mechanical gauges or specialised diagnostic equipment. KD nipples are usually permanently threaded in the test ports on the machine with the coupler attached to the test instrument.
Komatsu, Hitachi
Materials: Steel Trivalent Plated
Valve: Pin
Threads: BSP
Test 20 Series Diagnostic Couplers
T20 couplers provide easy connection to mechanical gauges or specialised diagnostic equipment. T20 couplers are usually permanently threaded in the test ports on the machine with the coupler attached to the test instrument by a hose.
T20 M16x2 Test Points
Materials: Steel Trivalent Plated
Valve: Poppet
Threads: BSP, NPT, UNO, Metric
Test Hoses
1/4 BSP gauge x Test 20 female (M16*2)
Test 20 female (M16*2) x Test 20 female (M16*2)
THG1/4-T2015 Hose assembly 1.5 Metres long
THG1/4-T2020 Hose assembly 2.0 Metres long
63mm Analogue Pressure Gauges
The G63B analogue pressure gauge with bourdon tube can accurately measure pressures with an accuracy of 1.6% with good stability and shock resistance.
1/4 BSP Connection
The case is made of 304 grade stainless steel and filled with glycerine. The 1/4 BSP connection is made of copper. Can be used to measure gas, liquids, oil and other non-corrosive media.
The gauges are 63mm diameter and 33mm thick with bottom entry. Operating temperature up to 55⁰ C with glycerine filling. Pressure is shown in both PSI and Bar
Pressure Gauge Accessories
Gauge adaptor, 1/4 BSP to T20 female. Screws direct to T20 test point (M16*2)
| Part # | G1 | G | H | CH |
|---|---|---|---|---|
| GA1/4G-T20F | 1/4 BSP | M16*2 | 50 | 19 |

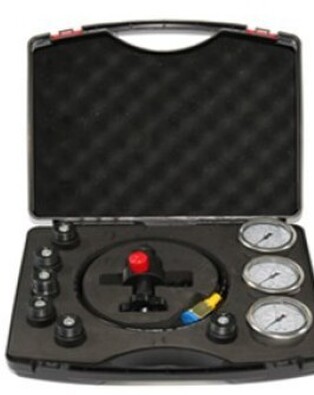

Hydraulic Test Kits

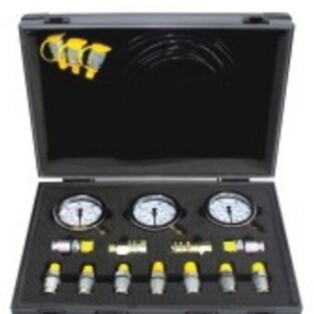

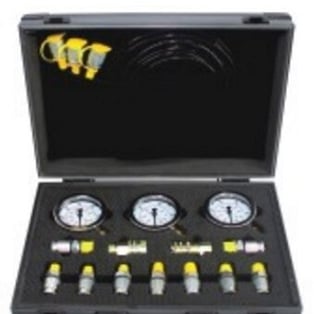

| Description TK11-3-3 | Quantity |
|---|---|
| 63mm Gauge 25MPa, 250 Bar, 3700 PSI | 1 |
| 63mm Gauge 40MPa, 400 Bar, 6000 PSI | 1 |
| 63mm Gauge 60MPa, 600 Bar, 9000 PSI | 1 |
| Test Hose 1.5Mt Long | 3 |
| Test Coupling 1/8 BSPP | 1 |
| Test Coupling 1/4 BSPP | 1 |
| Test Coupling 3/8 BSPP | 1 |
| Test Coupling M10*1 | 1 |
| Test Coupling M10*1.25 | 1 |
| Test Coupling M14*1.5 | 1 |
| Test Coupling 7/16 UNO | 1 |
| Test Coupling 9/16 UNO | 1 |
| Test Coupling 1/4 NPT | 1 |
| PD Series - Cat, Case, John Deere 1/8 BSPF | 1 |
| KD Series - Komatsu, Hitachi 1/4 BSPF | 1 |

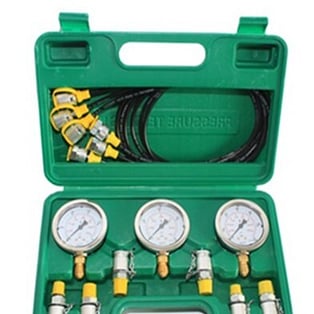

| Description TK6-3-3 | Quantity |
|---|---|
| 63mm Gauge 25MPa, 250 Bar, 3700 PSI | 1 |
| 63mm Gauge 60MPa, 600 Bar, 9000 PSI | 1 |
| Test Hose 1.5Mt Long | 1 |
| Test Coupling 1/4 BSPP | 3 |
| Test Coupling M10*1 | 1 |
| Test Coupling M14*1.5 | 1 |
| Test Coupling 7/16 UNO | 1 |
| Test Coupling 1/4 BSPT | 1 |
| Test Coupling 1/4 NPT | 1 |

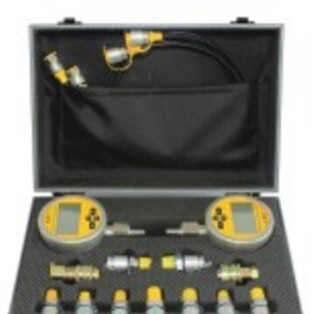

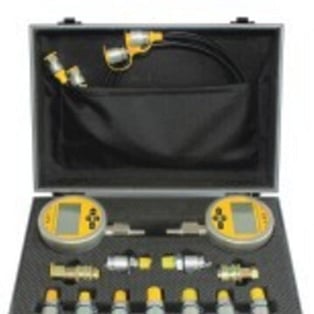

| Description TKD11-2-2 | Quantity |
|---|---|
| Digital Gauge 100 Bar & 600 Bar | 2 |
| Test Hose Assemblies 1.5Mts | 2 |
| Test Coupling 1/8 BSPP | 1 |
| Test Coupling 1/4 BSPP | 1 |
| Test Coupling 3/8 BSPP | 1 |
| Test Coupling M10*1 | 1 |
| Test Coupling M10*1.25 | 1 |
| Test Coupling M14*1.5 | 1 |
| Test Coupling 7/16 UNO | 1 |
| Test Coupling 9/16 UNO | 1 |
| Test Coupling 1/4 NPT | 1 |
| PD Style - Bobcat, Cat, John Deere, Case | 1 |
| KD Style - Komatsu, Hitachi | 1 |
